63 minutes
3 KG
5000 m
12.5m/s
| Dimension | Folded (including propellers): 347×367×424mm (L×W×H) |
|---|---|
| Maximum flight time | No load: 63min |
| Symmetrical motor diagonal distance | ≤ 725mm |
| Weight | 2.35kg Left and right (excluding batteries) |
| Maximum takeo weight | 7kg |
| Maximum Payload | 3kg (Under the maximum payload, the maximum safe flight speed is only 15m/s) |
| Noise | ≤ 58dB@5m position |

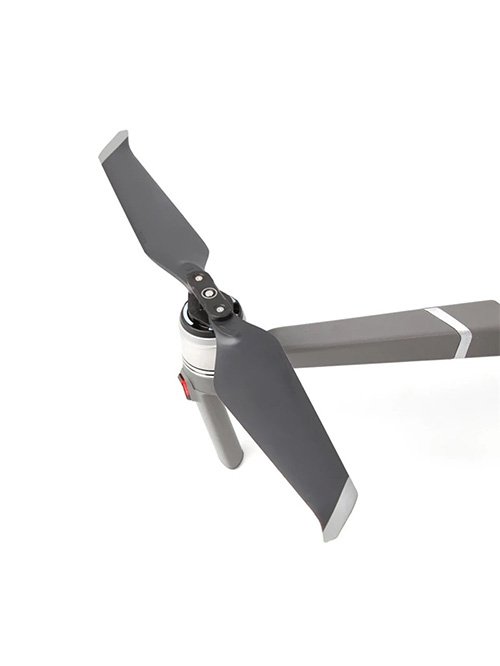

| Propeller | 1866 folded propellers |
| Hovering accuracy (GNSS) | Horizontal: ±1.5m (with GNSS positioning) |
| Hovering accuracy (with vision positioning) | Horizontal: ±0.3m (with GNSS positioning) |
| Hovering accuracy (RTK) | Horizontal: ±0.1m (with RTK positioning) |
| RTK position accuracy | When RTK is fixed: |
| Maximum angular velocity | Pitch axis: 200°/s |
| Maximum pitch angle | 30° (45° during emergent braking and startup) |
| Maximum ascent speed | S mode: 5 m/s |
| Maximum descent speed | S mode: 4 m/s |
| Maximum wind resistance | 15 m/s (Level VII) |
| Maximum flight speed | S mode: 23 m/s |
| GNSS satellite search time | Cold-startup satellite search time: ≤3.5 minutes |
| IP Rating | IP54 |
| Operating temperature | -20°C~55°C |
| Maximum takeoff altitude | 5000m |
Through day and night omnidirectional obstacle avoidance system
Through day and night omnidirectional obstacle avoidance system
Through visual positioning system
Including Visual, Thermal and LiDAR sensors
Control one aircraft using multiple remote control terminals
